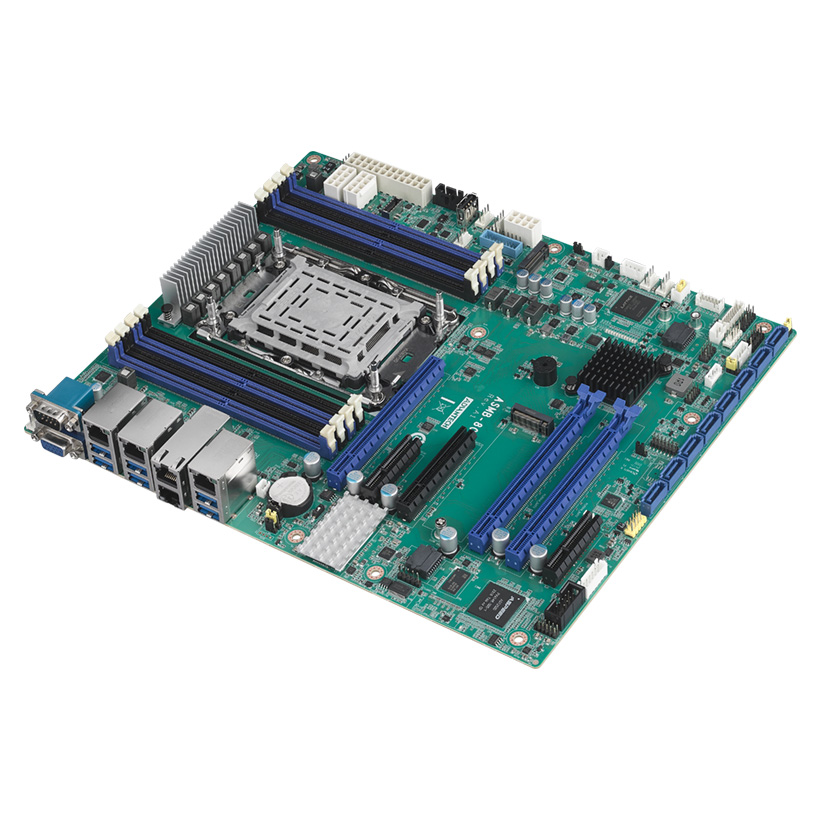

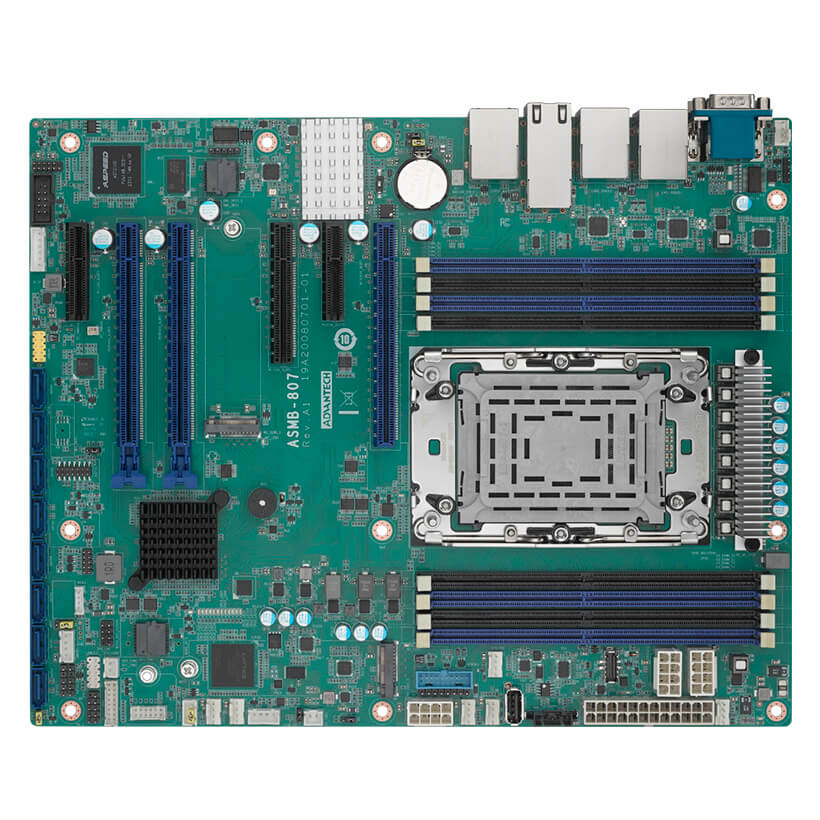

5th/4th Gen Intel® Xeon® W ATX Server Board with 8 x DDR5, 3 x PCIe x16, 8 x SATA 3.0, 9 x USB 3.2 , 1 x USB Type C, 2 x M.2, Dual 10GbE, and IPMI
研华工控机 ASMB-807 服务器主板
- LGA4677 ATX server board with 4th Gen. Intel Intel® Xeon® W processor
- DDR5 5600/5200/4800/4400 MHz RDIMM up to 2TB (8 DIMMs) supports Intel® Optane™ Persistent Memory
- 3 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), and 2 x PCIe x4 (Gen4)
- Intel® X710 dual 10GbE ports
- 8 x SATA 3 and 2 x M.2 connectors (PCIe x4)
- 9 x USB 3.2 ports including one Gen2x2 via Type E-Key A connector
- 0 ~ 60°C (32 ~ 140°F) ambient operating temperature range
