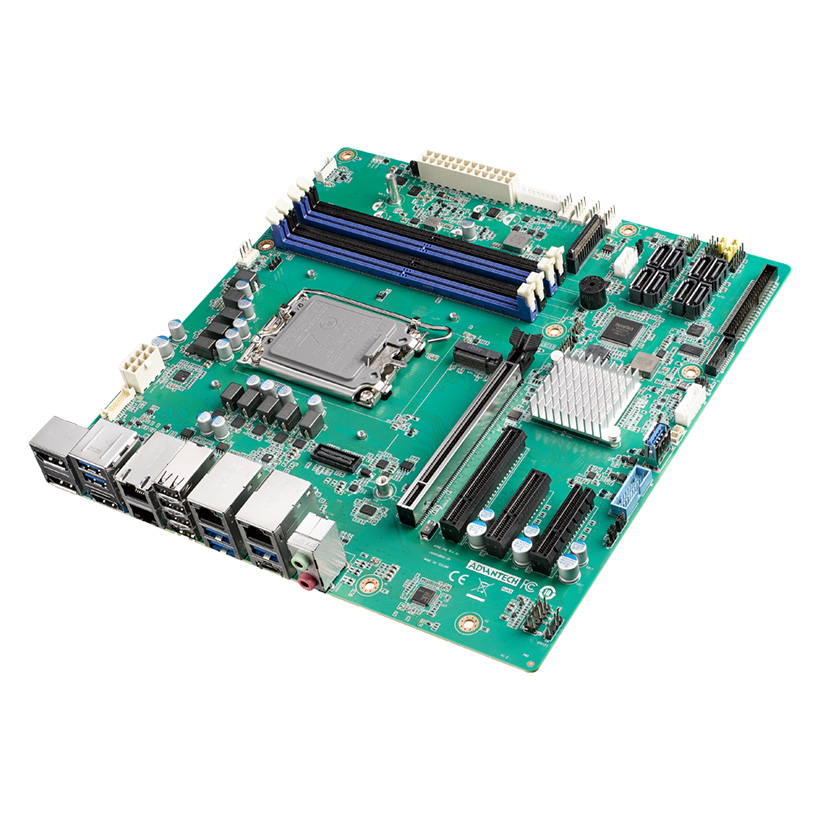

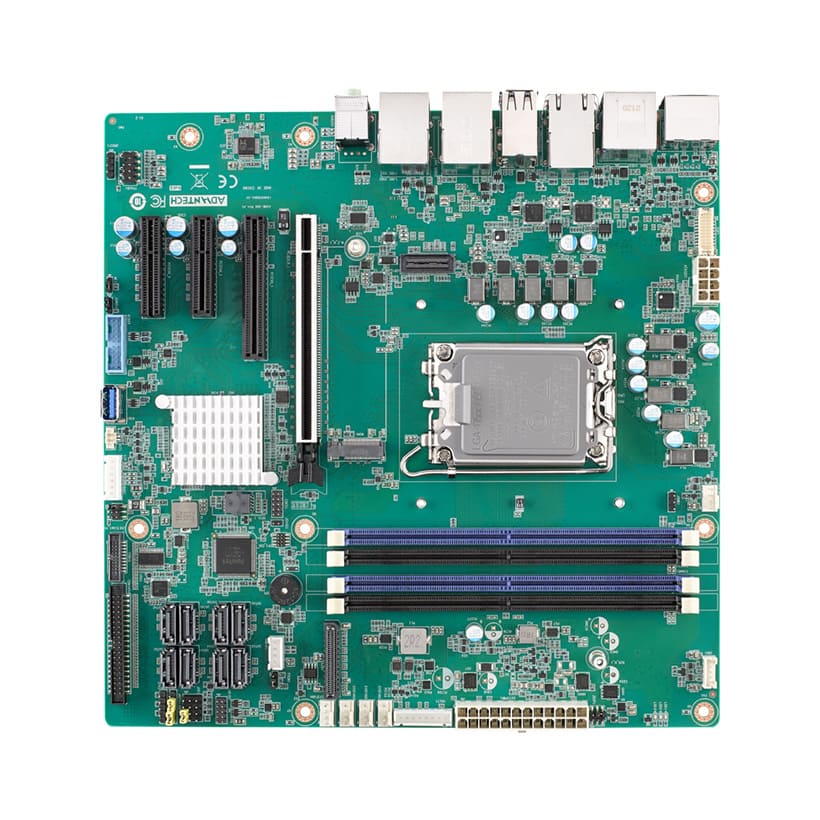

研华工控机 AIMB-588B1 MicroATX 主板 工业主板

• Supports Intel® 13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 processor with Q670E/ R680E/ H610E chipset

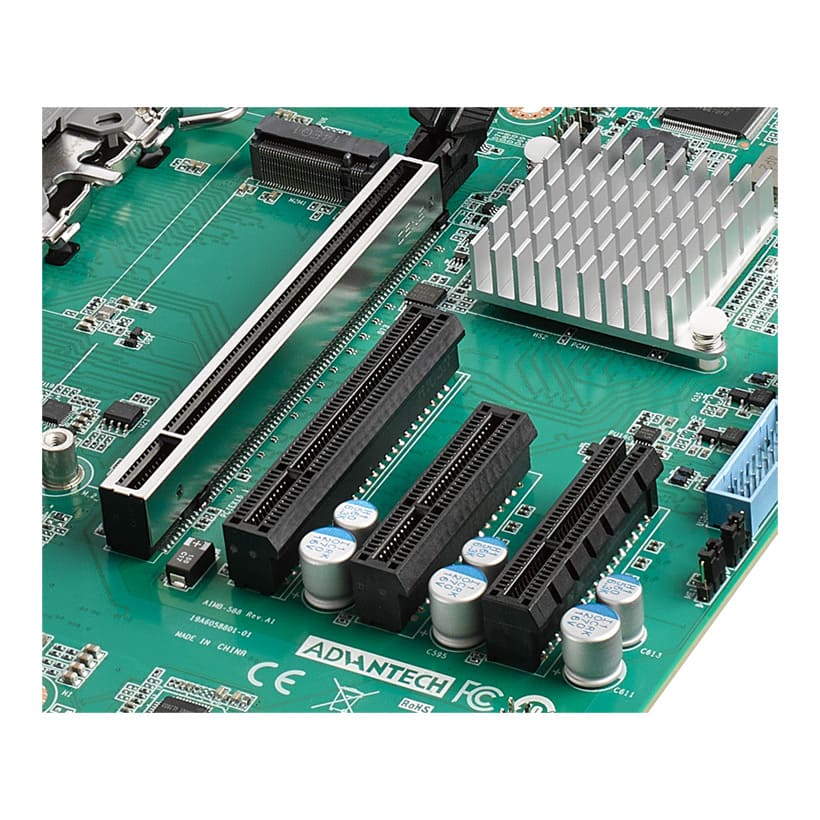

• PCIe x16 slot Gen5, PCIe x4 slot Gen4, PCIe x4 slot Gen3
• Max up to 8 USB 3.2, 1 USB 3.2 Gen2 Type C, 4 USB 2.0, 8 SATAIII, 1 GbE LAN, 3 2.5GbE LANs, 1 M.2 M-Key
• Supports four displays. (2 DP++, HDMI, eDP)
• Supports up to 32GB DDR5 5200MHz with four UDIMMs

Intel® 12th/13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 LGA1700, MicroATX with2 DP++/HDMI/eDP /8 SATA/6 COM/1 Gbe LANs/ 3 2.5GbE LANs/8 USB3.2 Gen2
